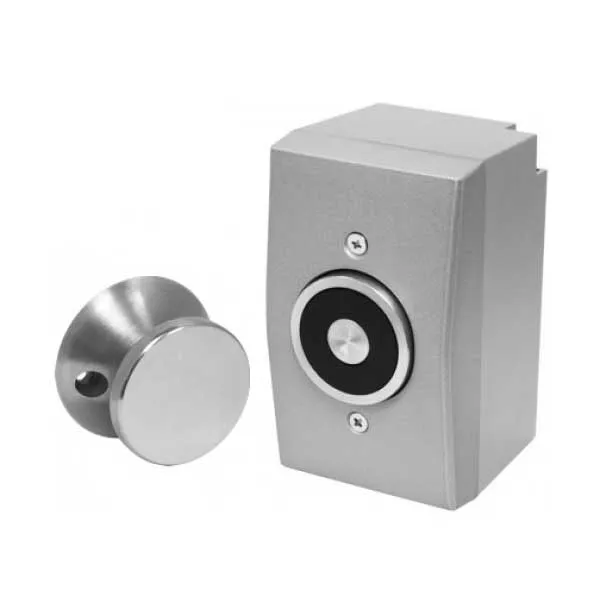

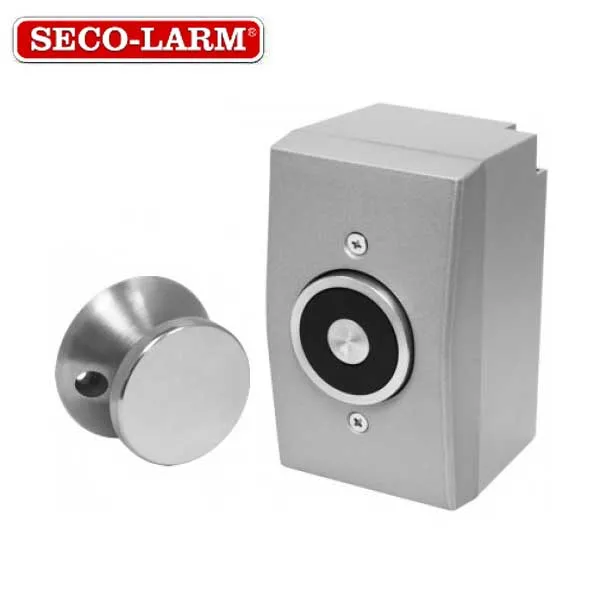

Name: Seco-Larm - Magnetic Door Holder - Surface Mount - 33lb Holding Force - UL Listed
SKU: 583278

Product Details ＋

The UL Listed SECO-LARM Magnetic Door Holders are designed for virtually any remote door release applications, whether residential or commercial. Fail-safe operation, tri-volt coils, and adjustable armature plate allows for easy and flexible installation.

For use with door closers to control the release and closing of residential, commercial, and public area doors
Adjustable armature plate reduces installation time and adjusts to door alignment changes
Low profile design
Holding force – 33-lb (15kg)
3 voltages: 12/24 VAC/VDC, and 120VAC
Cast aluminum faceplate
No residual magnetism for easy release
Built-in voltage spike suppressor
Use with SECO-LARM door closers

Specifications

Holding Force	33-lb (15kg)
Installation	Surface-mount
Operating Voltage	12/24 VAC/VDC, 120VAC
Current Draw	52mA@12VAC, 60mA@12VDC, 27mA@24VAC, 31mA@24VDC, 24mA@120VAC
Magnet Box Weight	1-lb 6.4-oz (920g)
Door Armature Weight	8.1-oz (230g)
Electromagnet Dimensions	2-3/4" x 4-9/16" x 3" (70 x 116.5 x 76 mm)
Armature Dimensions	2-9/16" x 2-9/16" x 1-9/16" (65 x 65 x 40 mm)
