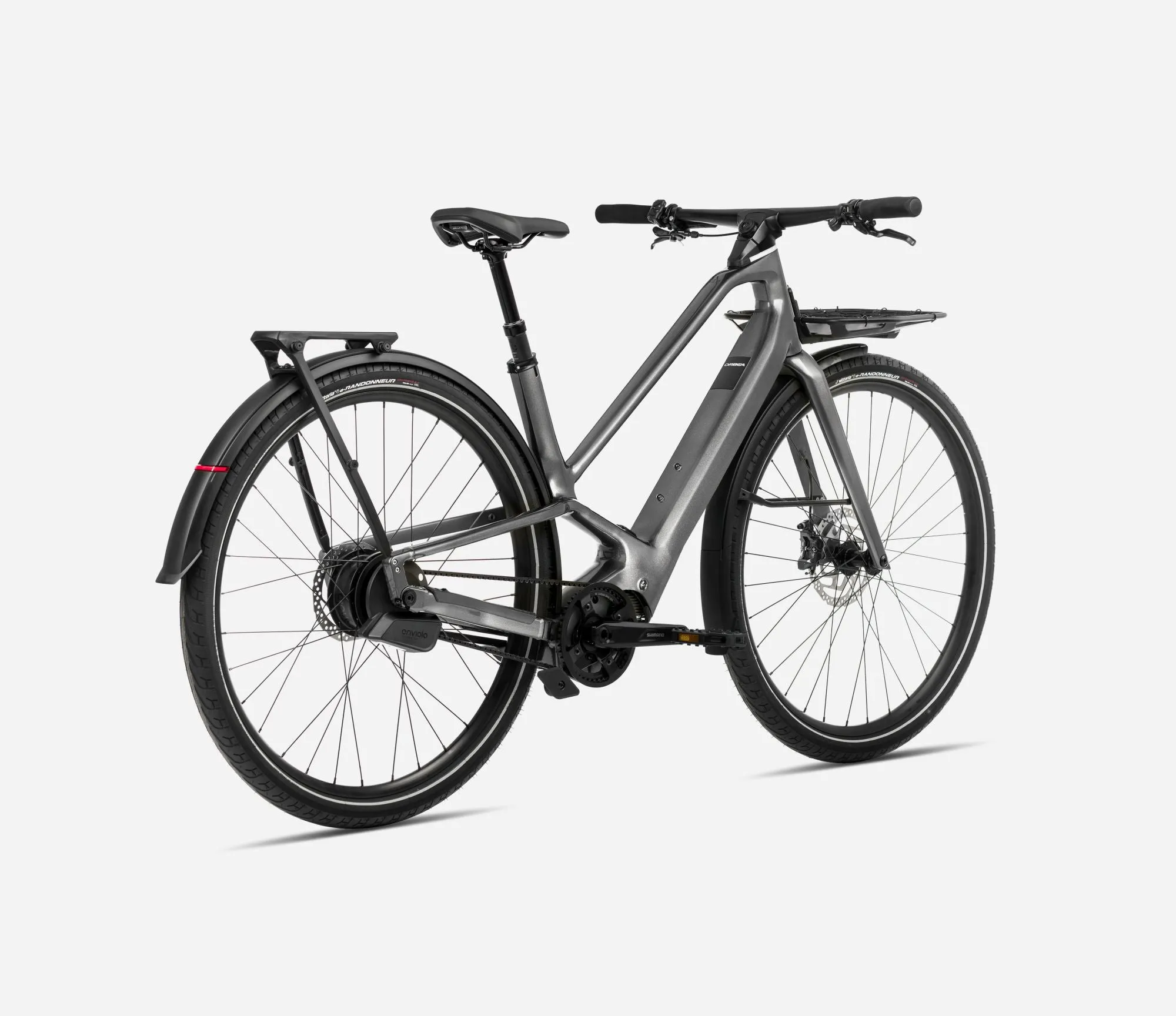

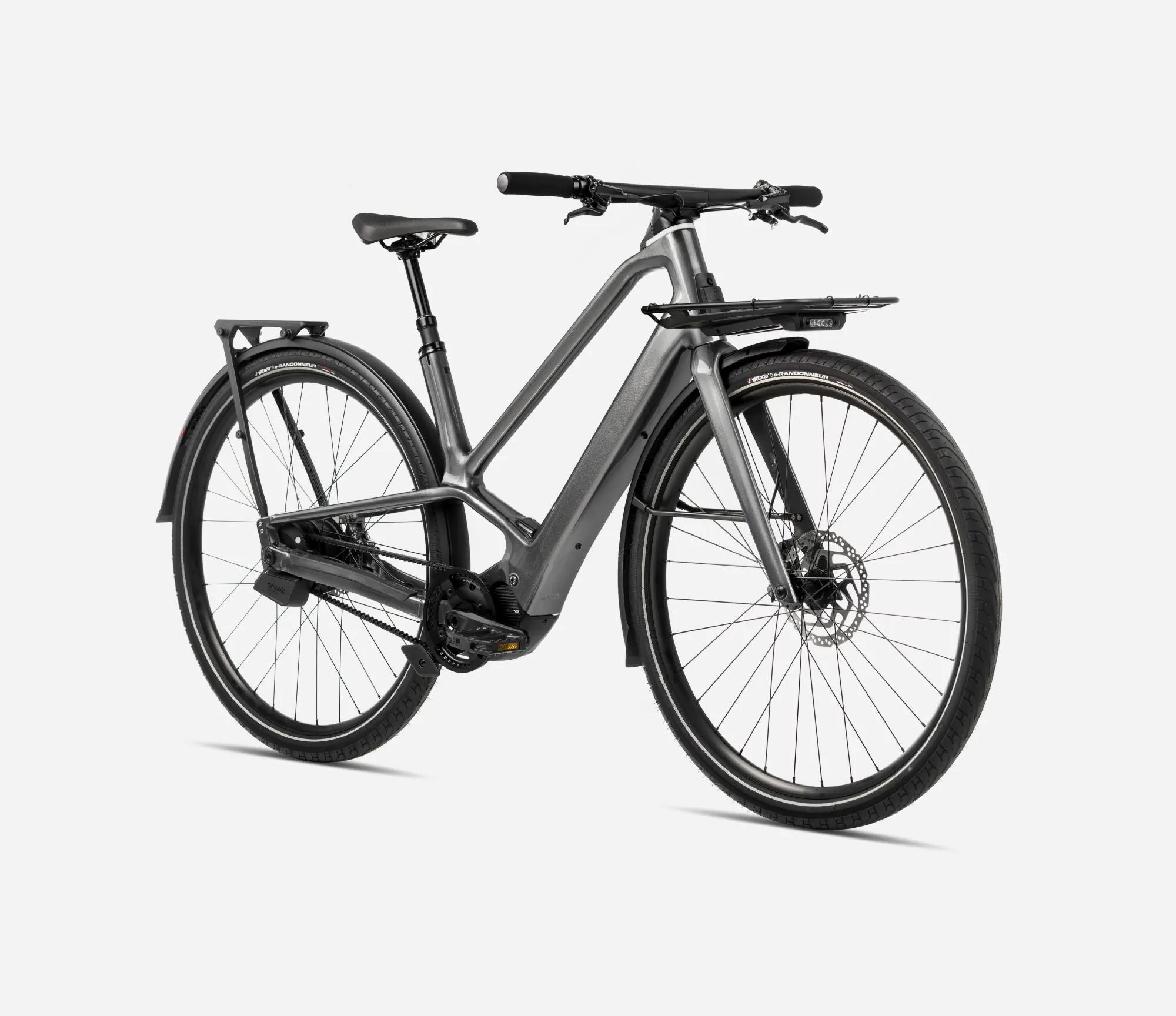

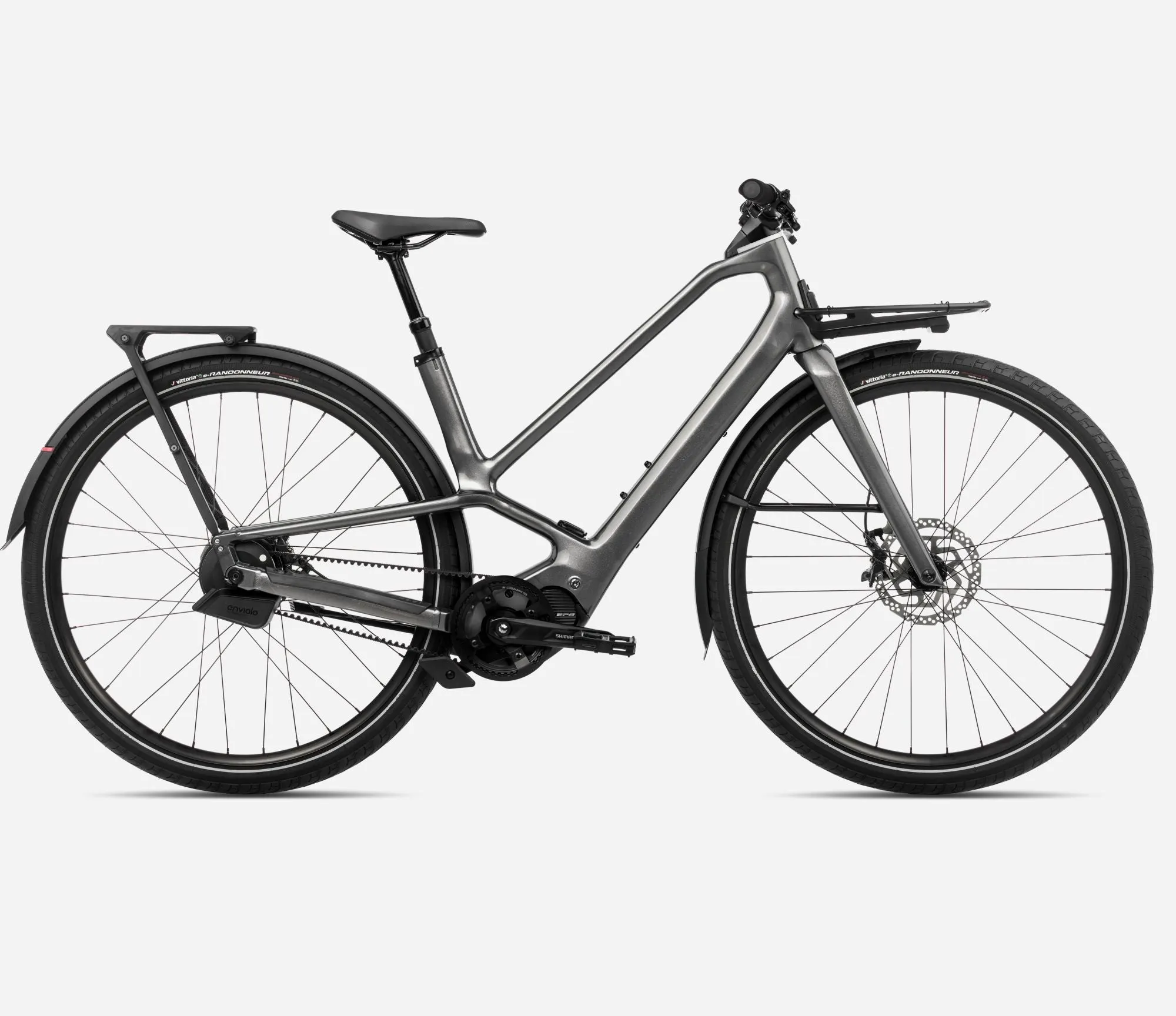

Orbea Diem 10 - Electric Commuter Bike
Getting from A to B? The Orbea Diem 10 turns it into a joyride. This urban e-bike isn’t just about efficiency—it’s about showing up in style. With sleek lines, intuitive design, and smooth pedal assist, the Diem 10 is your trusty companion for the daily grind. Whether you're weaving through traffic or cruising along riverside paths, its powerful motor ensures every ride feels effortless.
Quick Glance - Diem 10 - Electric Commuter Bike
- Terrain: Commuter/City Bike
- Battery: Shimano EP8
- Battery Watt-Hours: 630Wh
- Frame Material: Aluminum
- Groupset: Enviolo Automatiq
- Brakes: Shimano CUES U8020
- Weight: 23.5KG
Say goodbye to the grind and hello to smooth sailing! The Orbea Diem 10 isn’t just another electric commuter—it’s a bike built to make every ride feel like a mini adventure.
Shimano EP8 Motor
Powered by the compact yet mighty Shimano EP801 motor (with a whopping 85Nm of torque), this futuristic beauty glides effortlessly through your day. Need more juice? Its long-range 630Wh battery keeps the fun rolling for up to 9 hours—add a range extender, and you’ve basically unlocked superpowers.
Enviolo Automatic Gearing
With Enviolo automatiq gears and a low-maintenance Gates carbon belt drive, shifting is seamless, quiet, and built to last. And let’s be honest—who has time to tinker with gears when you’ve got places to be? Speaking of smooth moves, all cables are tucked neatly inside the frame for that sleek, minimalist vibe.
Futuristic Frame Design
The Diem’s patented Diamond Glide frame doesn’t just look cool—it won the 2024 IF Design Award for a reason. It's stiff where it counts, light enough to zip through city streets, and rock-solid for housing all the tech. Oh, and it rides like a dream—smooth, athletic, and ridiculously fun.
Extra bits and bobs
This e-bike’s got brains, too. Integrated lights automatically switch on as the sun sets, while a USB-C port on the stem keeps your devices charged on the go. Need to carry a load? The Diem 10 comes ready with a custom front carrier for all your essentials (or maybe a snack haul, we won’t judge).
And if you want to go full custom, Orbea’s MyO program lets you personalize everything—battery, accessories, the works. Not a fan of 9-speed auto-shifting? No worries—check out the Diem 20 with simpler gears and a bit more bang-for-your-buck.
So why settle for a boring commute when you could ride the future? Test the Orbea Diem 10 today and bring a little joy to your A-to-B!
Specification
Frameset | |
Frame | Orbea Diem Hydro High Polished 2024, Flex Tech, 135x9 / 142x12, Headset Routing, Custom Kickstand, Orbea Urban Cockpit and equipment compatible |
Fork | Orbea Diem carbon fork, full carbon, 1" 1/8 - 1" 1/5 , thru axle 12x1, post mount disc mount, Thrue Axle12x100mm, Long mudguards compatible. |
Steerer Tube | FSA 1-1/2" Integrated Aluminium Cup |
E-Bike | |
Battery | Orbea Internal 630Wh |
Range Extender | N/A |
Motor | Shimano EP801 |
Charger | Orbea 2.Generation eBike Smart Charger 42V/2-4V |
Drivetrain | |
Chainring | Gates CDX 46t w/Chainguard |
Crank | Shimano Steps EM600 |
Cassette | Gates CDX 34t for Enviolo |
Rear Derailleur | Enviolo Automatiq, BT |
Chain | Gates CDX Belt |
Cockpit | |
Handlebar | Orbea Urban, Integrated Light, Rise: 0, Width: 720 |
Brakes | |
Brakes | Shimano Cues U8020 Hydraulic Disc |
Wheels | |
Wheels | Alloy, Tubeless, 25mm, 32h |
Tyres | Vittoria e-Randonneur 50-622, Reflective Band |
Accessories | |
Pedals | VP-537 Black |
Front Carrier | Orbea RF-01 Alloy, Max. 10Kg wtih Aluminium Front Basket with net |
Rear Carrier | Orbea RR-01 Alloy, w/Mik & Mik Side and Ortlieb QL3.1 system. Max. 20Kg |
Mudguard | Curana Apollo Orbit 60mm |
Front Position Light | Orbea integrated, USB-C charging point |
Front Light | Supernova Starstream Pro, High Beam |
Rear Light | Orbea Fender integrated, with alert light |
Chainguard | Gates CDS |
Quick Stand | Orbea Diem Integrated |
Bell | Knog OI Classic |
Components | |
Seatpost | OC Mountain Control MC22, 31.6mm, Dropper |
Seatpost Lever | Shimano SL-MT500 |
Saddle | Selle Royal Vivo Ergo |
*We reserve the right to make changes to the product and component information appearing on this site at any time without notice, including with respect to equipment, specifications, models, colors, and materials.
Geometry
SMALL | MEDIUM | LARGE | X-LARGE | ||
1 | Seat Tube (C-T) | 442 | 468 | 490 | 540 |
2 | Top Tube (EFF) | 586 | 610 | 634 | 659 |
3 | Head Tube | 164.1 | 187.4 | 210.6 | 233.7 |
4 | Chainstay | 435 | 435 | 435 | 435 |
5 | BB Height | 379 | 279 | 279 | 279 |
6 | BB Drop | 82 | 82 | 82 | 82 |
7 | Wheelbase | 1102 | 1121.6 | 1140.8 | 1159.5 |
8 | Head Angle | 69 | 69.5 | 70 | 70.5 |
9 | Seat Angle | 74.7 | 74.3 | 74 | 73.7 |
10 | Standover | 672 | 686 | 700 | 713 |
11 | Reach | 422 | 428 | 454 | 470 |
12 | Stack | 601 | 625 | 649 | 673 |
13 | Fork Length | 410 | 410 | 410 | 410 |
14 | Rake | 50 | 50 | 50 | 50 |
Reviews
A bike built for the commuter lifestyle. From getting from A to B. However, don't just trust our word for it, trust the word of the industry. We have picked some of the genuine resources who have reviews the Orbea Diem 10 so you can help decided if this is the bike for you.
Electric Bike Journal
"What makes a perfect city bike? Well our time with the Diem so far has us scratching our heads to think of what more we could want. The riding experience is the first thing to note on a city bike, especially when considering commuting 5 days a week.
The Diamond Glide frame, carbon fork, and 50c tires are a match made in heaven for comfort around town. The Diem soaks up road chatter while allowing you to pedal hard and push the boundaries of your riding similar to a performance road bike.
Integration and adaptability are the second most important thing for us on a city bike. Full fenders, integrated racks and lights, the Diem comes prepared for all day riding year-round.
Quality componentry is the final box on our check list and Orbea held nothing back. The Diem 10 coming with a Shimano EP801 and an Enviolo Automatiq hub with the Gates CDX Belt really is the pinnacle of componentry for urban riding. This distraction-free trio allows you to focus on the ride and not be held back with loose shifting or loud noises from the drivetrain.
All in all, the Diem has redefined what a city bike can be and we are looking forward to the many miles and months to come to see how it performs over time."
