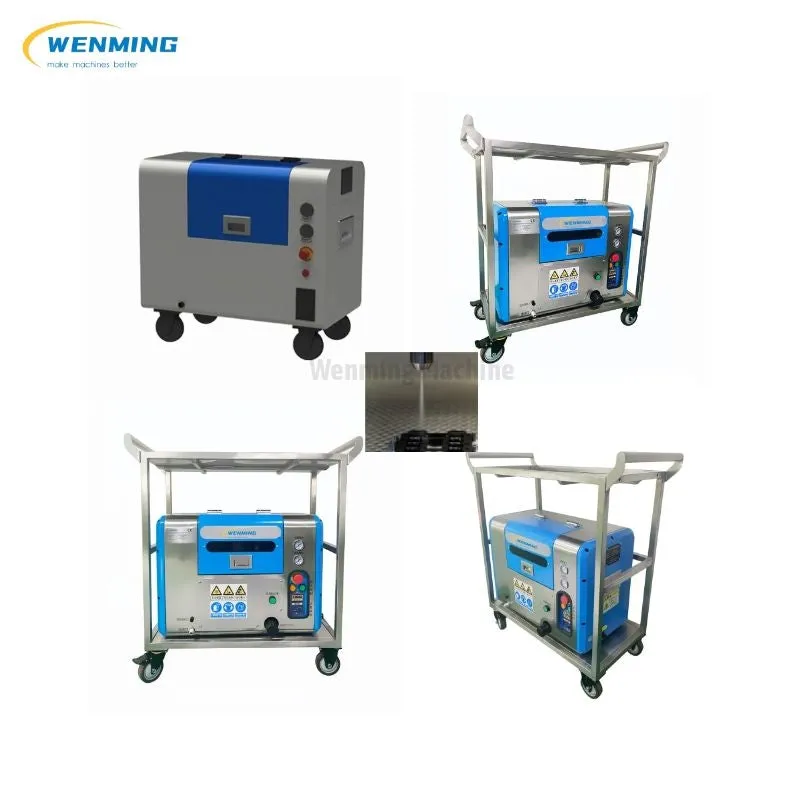

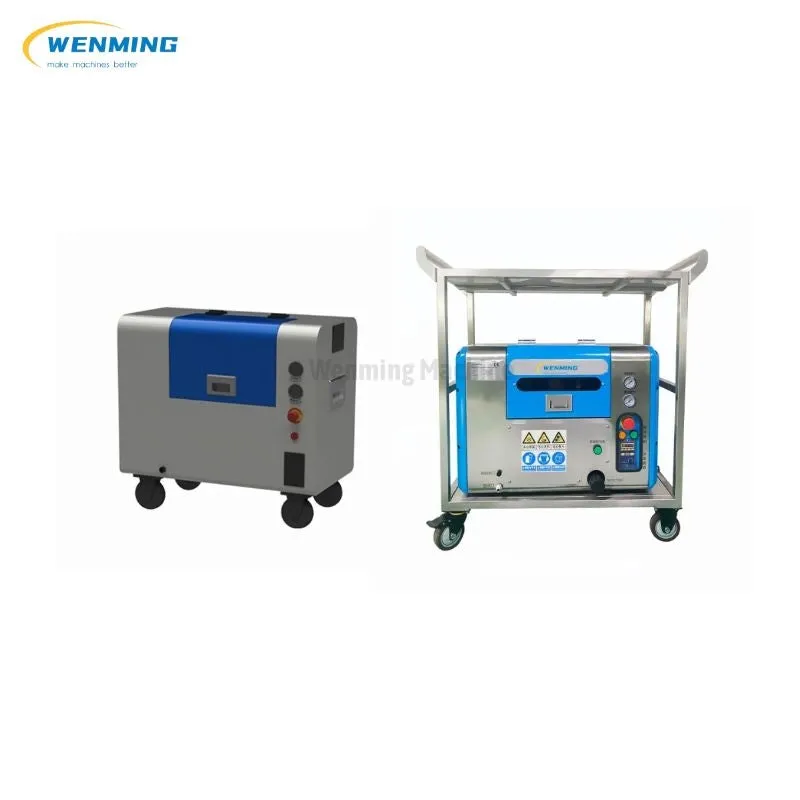

PCB Cleaning Machine Dry Ice Cleaning Machine dry ice blaster machine

Dry Ice Cleaning Machine Introduce:

The Dry Ice Cleaning does not cause any damage to the surface of the cleaning object, especially the metal surface, nor does it affect the smoothness of the metal surface.

This model is special for fine operation condition, widely used in deburring of 3C industry and molds industry.

The unique GBQ860 dry ice cleaning system uses the blade cutting method to remove the ice, and is equipped with the pressure conveying type to transport the dry ice.

This Dry Ice cleaning system sprays the dry ice of 0.1-0.2mm diameter, is equipped with the function of pressure adjustment and ice volume adjustment. It is special designed for fine operation condition, widely used in deburring of 3C industry and molds industry.

It has a high degree of modification, connect with the manipulator, it can realize automatic spraying operation, then cleaning more reliable, More sophisticated.  You can let us know your processing, we can design automatic plan for you.

The dry ice blast cleaning machine is mainly used: 1. In automotive industry - to clean carbon deposits inside the engine, mold, as well as wax and polyurethane residue on the car seat tooling. 2. In tire industry - to clean tire mold. 3. In power industry - to clean generator housings, fan blades and power distribution systems, as well as the surface of stators and rotors. 4. In food industry - to clean carbon deposits on conveyor belts, furnaces, baking trays, rollers, and other transport devices. 5. In printing industry - to clean ink and fuel deposits on gears, guides and nozzle.

You can click here to see all of our

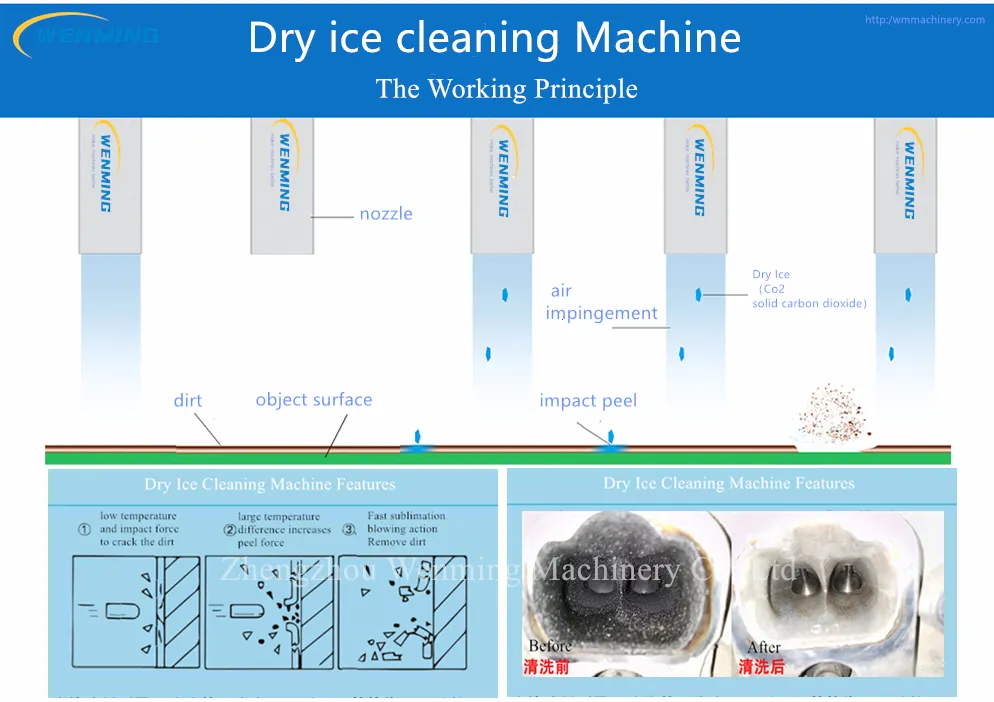

Dry Ice Cleaning Machine Principle

When the equipment is working, the dry ice is transferred into the ice mixing chamber at the discharge port of the funnel. There are grooves on the circumference of the ice cutter wheel inside the ice mixing chamber. The grooves can hold dry ice pellets,The mixed popsicle is driven by the motor to rotate,Dry ice is brought into a relatively closed space by rotating motion, mixed with high-pressure air flow, and then pushed by the air flow through the ice conveying pipe, and is constrained to a specific air flow line by the handle spray gun and sprayed out.It hits the dirt surface and instantly expands about 800 times.After its own volume peels the dirt ff the surface of the object, it is taken away by the airflow.Adjust the appropriate amount of ice output according to the strength of dirt adhesion.

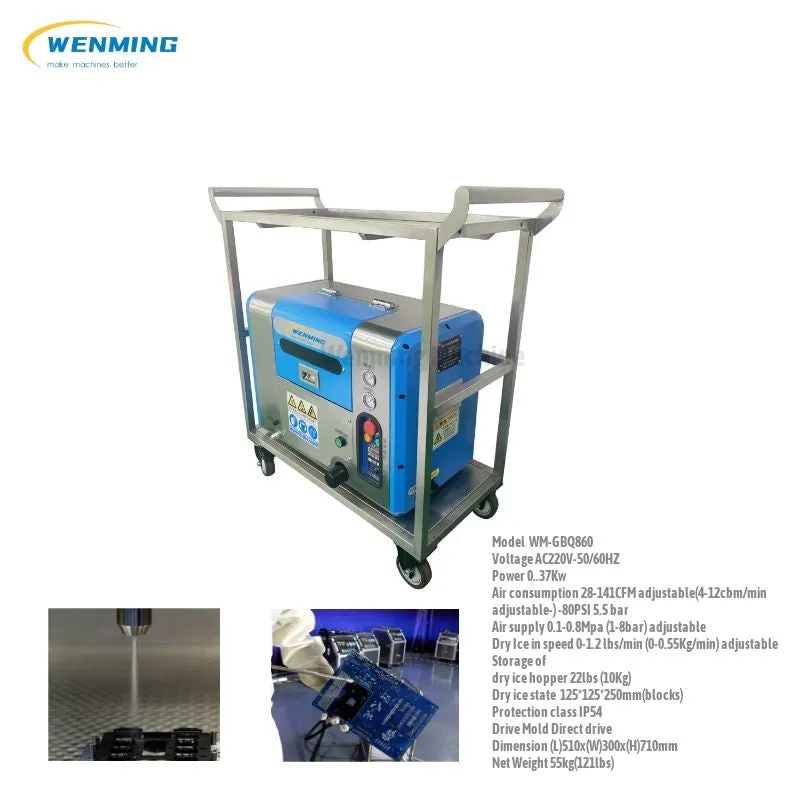

Dry Ice Cleaning Machine Technical Parameters:

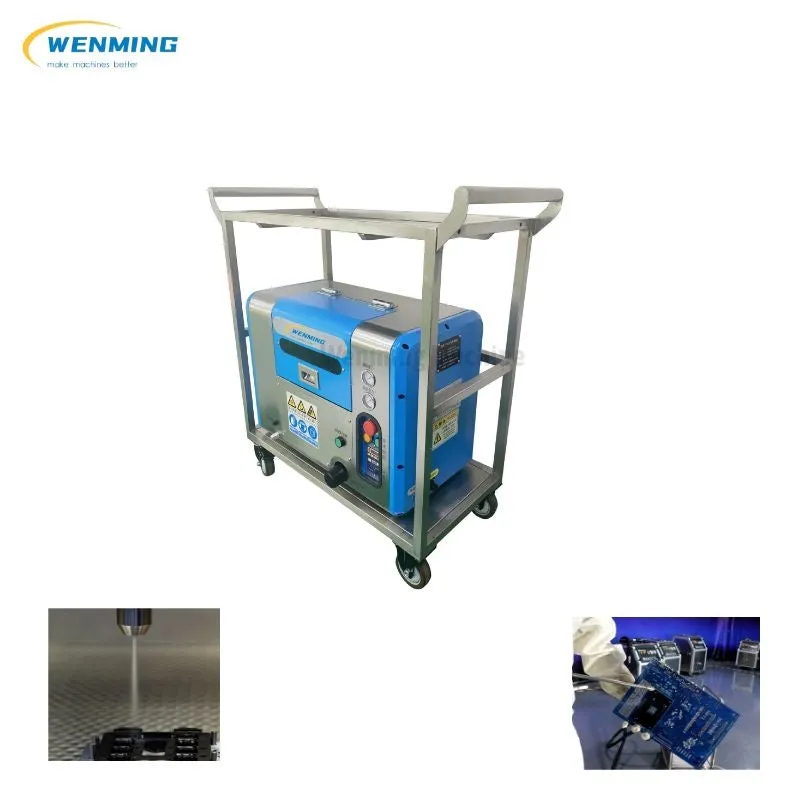

GBQ860 Automatic dry ice blaster machine for 3C industry and molds industry

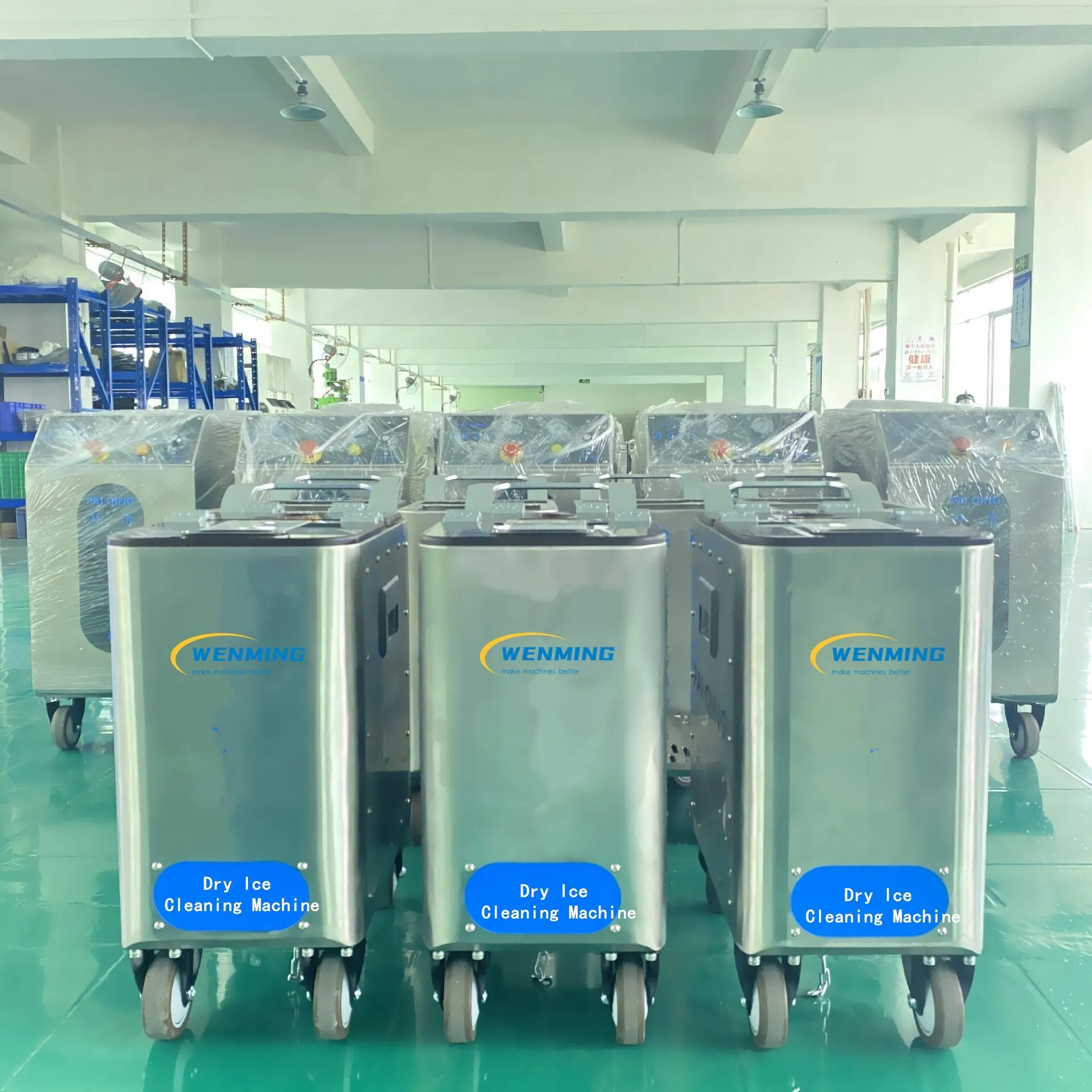

 Dry Ice Cleaning Machine in our warehouse
