Dry ice blaster cost price Dry Ice Blasting machine Dry Ice Cleaning for Cars,molds,machine part dry cleaning machine

Dry Ice Blasting Machine Introduce:

The Dry Ice Cleaning does not cause any damage to the surface of the cleaning object, especially the metal surface, nor does it affect the smoothness of the metal surface.

This GBQ770 Dry Ice Cleaning Machine has a large shape and can load more dry ice. It is equipped with a variety of nozzles to meet the use of multiple scenes. In addition, the pressure adjustment knob is added to adjust between different spray intensities, and the roller quick change module is configured to quickly switch between different dry ice particle sizes, So that one machine can be used for multiple purposes.

Dry Ice Blasting machine other use

The dry ice blast cleaning machine is mainly used: 1. In automotive industry - to clean carbon deposits inside the engine, mold, as well as wax and polyurethane residue on the car seat tooling. 2. In tire industry - to clean tire mold. 3. In power industry - to clean generator housings, fan blades and power distribution systems, as well as the surface of stators and rotors. 4. In food industry - to clean carbon deposits on conveyor belts, furnaces, baking trays, rollers, and other transport devices. 5. In printing industry - to clean ink and fuel deposits on gears, guides and nozzle.

You can click here to see all of our models:

Dry Ice Cleaning Machine Principle

When the equipment is working, the dry ice is transferred into the ice mixing chamber at the discharge port of the funnel. There are grooves on the circumference of the ice cutter wheel inside the ice mixing chamber. The grooves can hold dry ice pellets,The mixed popsicle is driven by the motor to rotate,Dry ice is brought into a relatively closed space by rotating motion, mixed with high-pressure air flow, and then pushed by the air flow through the ice conveying pipe, and is constrained to a specific air flow line by the handle spray gun and sprayed out.It hits the dirt surface and instantly expands about 800 times.After its own volume peels the dirt ff the surface of the object, it is taken away by the airflow.Adjust the appropriate amount of ice output according to the strength of dirt adhesion.

Dry Ice Blasting Machine Technical Parameters:

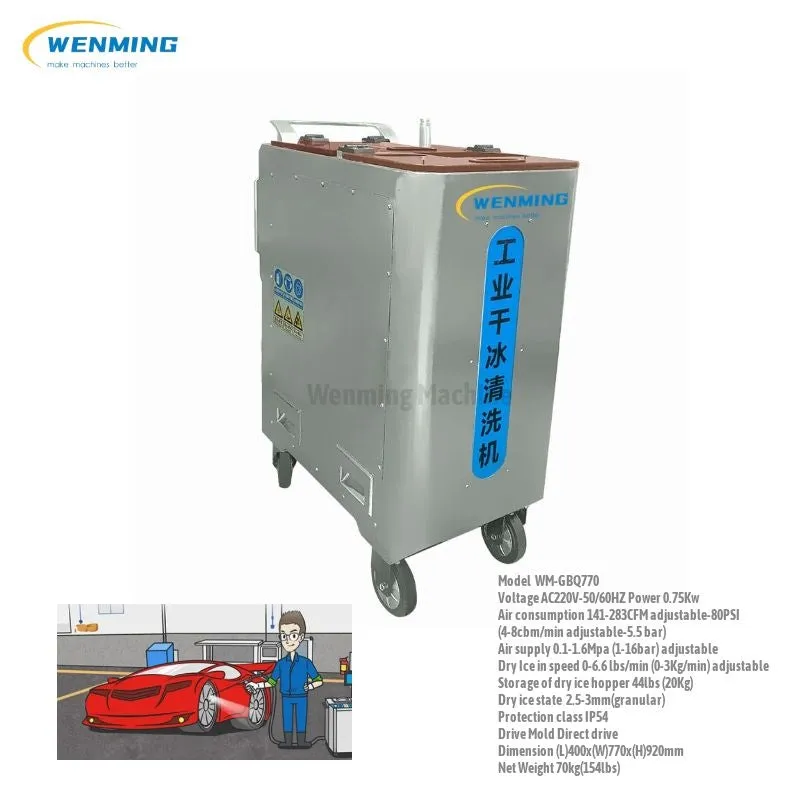

GBQ770 dry ice blaster for Cars and industrial

Model

WM-GBQ770

Feature

Voltage

AC220V-50/60HZ

Medium Flow Gun



Power

0.75Kw

Air consumption

141-283CFM

adjustable-80PSI

(4-8cbm/min

adjustable-5.5 bar)



◆At 80 psi (5.5 bar) requires 100 SCFM (2.8m3/min)

◆The spray width is 1.8" (4.6 cm)

12" (30.5cm) long

◆Requirement: 100CFM (2.8m3/min), under 80PSI (5.5 bar)

◆Dry ice feed rate: 2-4 lbs/min (1.4-2.3Kg/min)

Material: Aluminum

Air supply

0.1-1.6Mpa (1-16bar) adjustable



Dry Ice in speed

0-6.6 lbs/min (0-3Kg/min) adjustable

Large flow extended spray gun



Storage of

dry ice hopper

44lbs (20Kg)

◆At 80 psi (5.5 bar) requires 100 SCFM (2.8m3/min)

1" (2.5 cm) spray width

◆Length 25.6" (65cm)

◆Requirement: 198CFM (5. 6m3/min), under 80PS1 (5.5 bar)

Ice Feed Rate: 2-8. 4 lbs/min (0.9-3.8Kg/min)

Material: Aluminum

Dry ice state

2.5-3mm(granular)



Protection class

IP54

Drive Mold

Direct drive

Dimension

(L)400x(W)770x(H)920mm

Net Weight

70kg(154lbs)

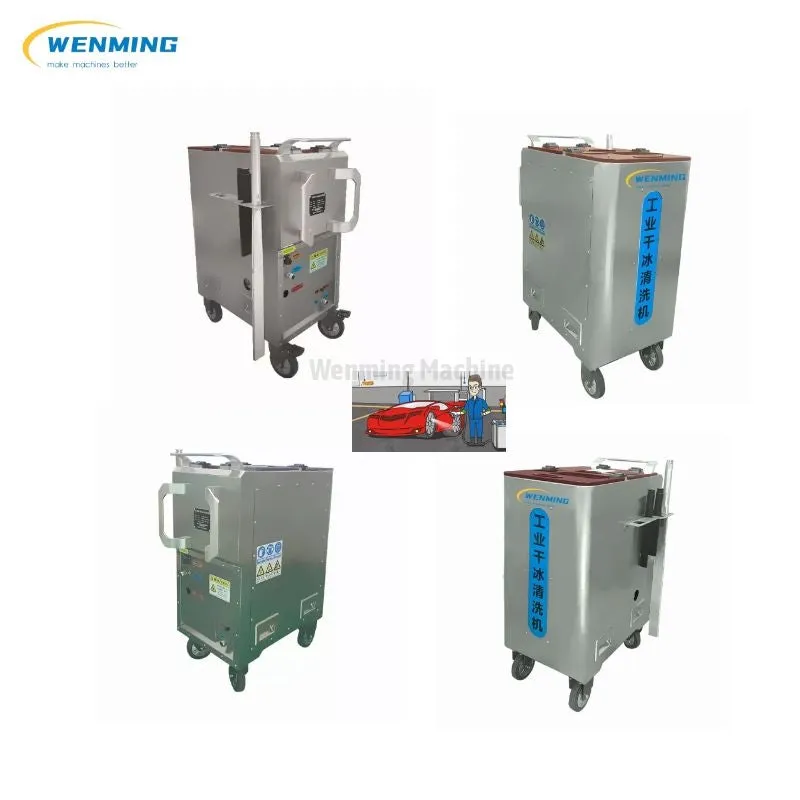

Also have other Dry Ice Cleaning machien modles for differnt use

the GBQ700 speical for Car service workshop, have back storage box



GBQ770 Dry ice blaster cost price Car Dry Ice Blasting machine
