Product Details
+

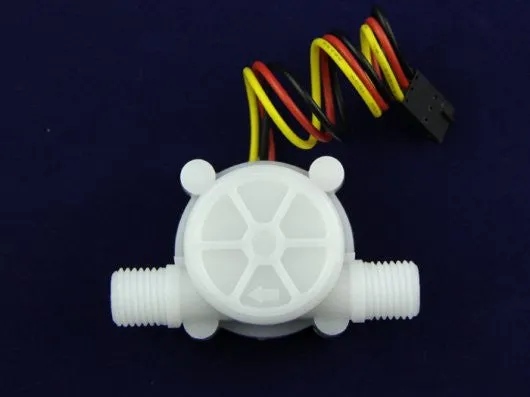

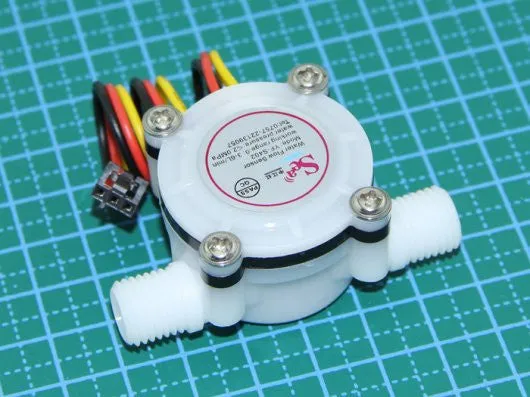

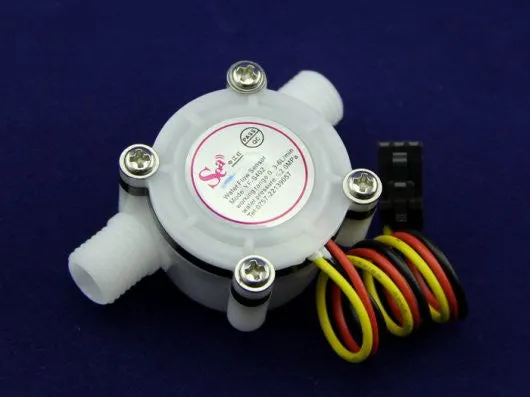

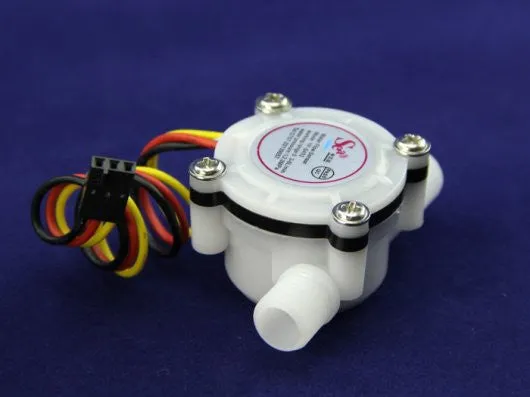

This G1/4" Flow Sensor includes a durable plastic valve body, an inner rotor, and a hall-effect sensor. Flowing water causes the rotor to spin, and its speed varies depending on the flow rate. The hall-effect sensor detects these changes and produces a corresponding pulse signal. This flow sensor is perfect for use in water dispensers and coffee makers. Our selection of water sensors features a range of diameters, so you're sure to find the right fit for your needs.
Features
- Compact, Easy to Install
- High Sealing Performance
- High Quality Hall Effect Sensor
- RoHS Compliant
Specifications
- Mini. Wokring Voltage: DC 4.5V
- Max. Working Current: 15mA (DC 5V)
- Working Voltage: DC 5V~24V
- Flow Rate Range: 0.3~6L/min
- Load Capacity: ≤10mA (DC 5V)
- Operating Temperature: ≤80℃
- Liquid Temperature: ≤120℃
- Operating Humidity: 35%~90%RH
- Water Pressure: ≤2.0MPa
- Storage Temperature: -25~ 80℃
- Storage Humidity: 25%~95%RH
