Product Details

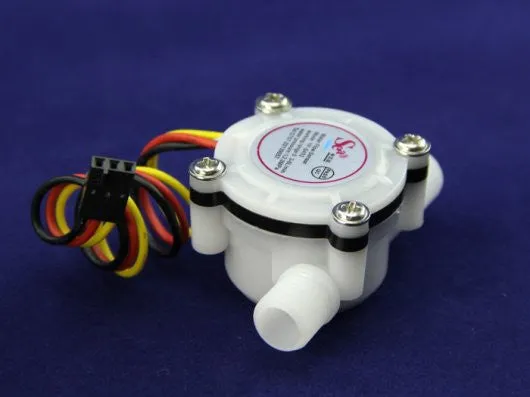

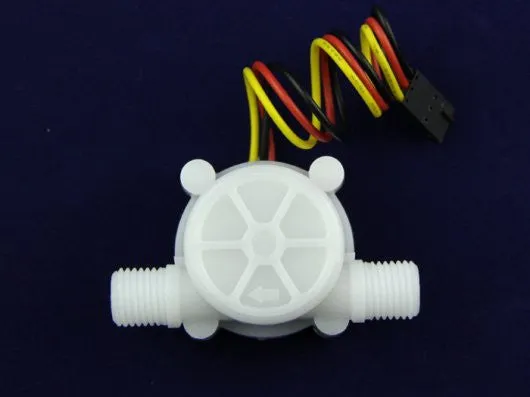

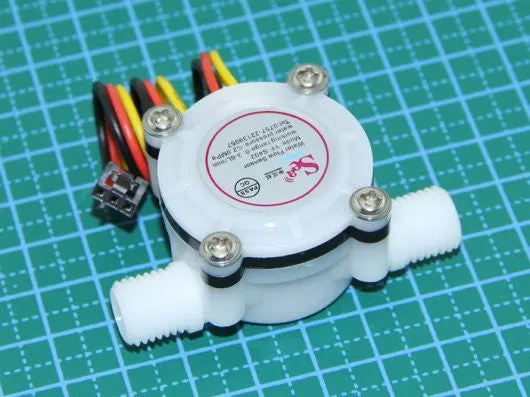

This G1/4" Flow Sensor includes a durable plastic valve body, an inner rotor, and a hall-effect sensor. Flowing water causes the rotor to spin, and its speed varies depending on the flow rate. The hall-effect sensor detects these changes and produces a corresponding pulse signal. This flow sensor is perfect for use in water dispensers and coffee makers. Our selection of water sensors features a range of diameters, so you're sure to find the right fit for your needs.
Features
  • Compact, Easy to Install
  • High Sealing Performance
  • High Quality Hall Effect Sensor
  • RoHS Compliant
Specifications
  • Mini. Wokring Voltage: DC 4.5V
  • Max. Working Current: 15mA (DC 5V)
  • Working Voltage: DC 5V~24V
  • Flow Rate Range: 0.3~6L/min
  • Load Capacity: ≤10mA (DC 5V)
  • Operating Temperature: ≤80℃
  • Liquid Temperature: ≤120℃
  • Operating Humidity: 35%~90%RH
  • Water Pressure: ≤2.0MPa
  • Storage Temperature: -25~ 80℃
  • Storage Humidity: 25%~95%RH
Documentations



G1/4" Water Flow Sensor
  • Localstock
  • Overseasstock

$ 18.45

$ 17.53
