Introducing the Draper Access V [NTSC 4:3] Tab-Tensioned Ceiling-Recessed Quiet Motor 7' (50" x 66 1/2") 140102Q, the ultimate projection screen solution for a seamless and immersive visual experience. This state-of-the-art projection screen combines cutting-edge technology with exceptional design to deliver superior performance and versatility.

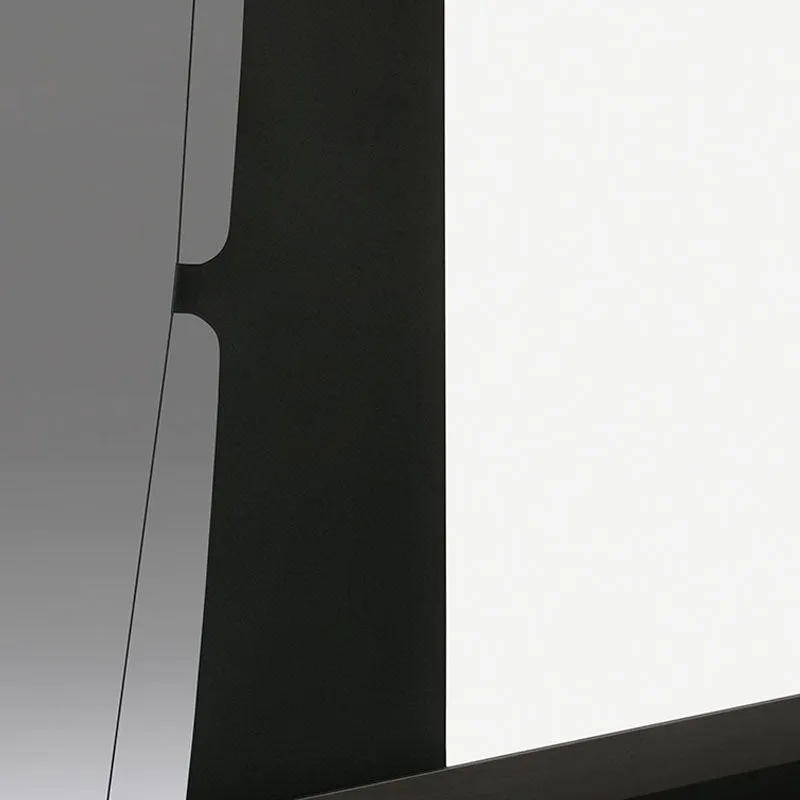

The Draper Access V features a tab-tensioned design, ensuring a flat and smooth screen surface that eliminates any wrinkles or waves, resulting in enhanced picture quality and clarity. The NTSC 4:3 aspect ratio provides a classic display format suitable for various applications, including presentations, home theaters, and educational environments.

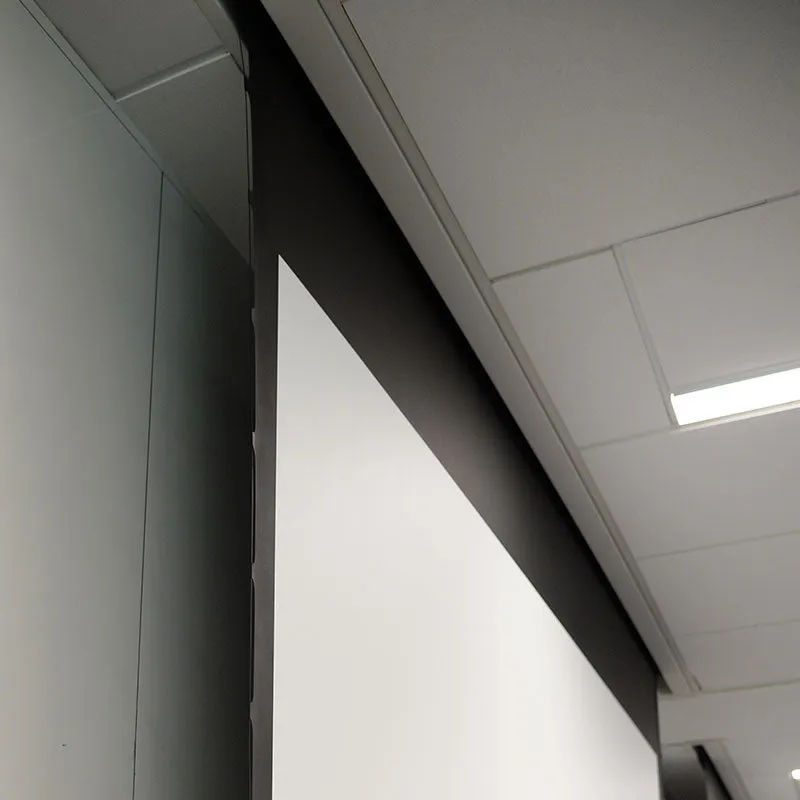

With its ceiling-recessed configuration, the Access V seamlessly integrates into any room decor. The screen elegantly disappears into the ceiling when not in use, creating a clean and unobtrusive aesthetic. This feature is especially beneficial in multipurpose spaces where the screen needs to be concealed when not in active use.

Equipped with a Quiet Motor, the Access V operates smoothly and silently, eliminating distracting noises that can disrupt your viewing experience. The motor is engineered for reliable and long-lasting performance, ensuring consistent operation and minimal maintenance requirements.

The screen measures 7 feet diagonally, providing an optimal viewing size suitable for medium to large spaces. The viewing area measures 50 inches in height and 66 1/2 inches in width, offering ample space to showcase your content with exceptional detail and color accuracy.

The Draper Access V is designed with convenience in mind. It includes an easy-to-use control system that allows for effortless operation, whether you prefer to control it with a wall switch, remote control, or integrate it into your existing automation system. The screen also features variable height settings, giving you the flexibility to adjust the screen position to accommodate different projection formats and room configurations.

In summary, the Draper Access V [NTSC 4:3] Tab-Tensioned Ceiling-Recessed Quiet Motor 7' (50" x 66 1/2") 140102Q offers a superior projection screen solution that combines exceptional performance, sleek design, and effortless operation. Whether you're presenting important business data or enjoying a movie night with friends and family, this screen is the perfect addition to elevate your visual experience to new heights.

Product Specs

•  Case dimensions are 7-3/8" high x 8-1/16" deep (19 cm x 20 cm), includes trim flange. Built-in controls may increase case length. Mounting brackets may add to case dimensions, see Submittal in the Technical Documents tab for details.

•  Maximum image width up to 16' (488 cm) wide, depending on surface selection.

•  The standard Access is a good alternative whenever the above-ceiling space permits. Access Fit is recommended when space is at a premium.

•  Image area fully framed with black. Standard 12" (30 cm) black drop at top of viewing area.

•  Adjustable or removable hoisting brackets included for easy lifting during installation.

•  Sliding brackets on top of the case allow for adjustments for mounting.

•  Sliding brackets inside case accommodate different size screens.

•  Bottom closure panel detachable or hangs in place with “T” bracket to provide accessibility for service or maintenance.

•  Quick-connect wiring allows for early installation of the case with the addition of the screen later.

•  Low voltage, video interface or other controls can be built into housing for below ceiling access.

•  Includes a 110V, 3-position switch (standard). Quiet, low voltage motors and 220V options are available.

•  White case standard, black available upon request.

•  Custom sizes available.

•  UL Listed.
