Introducing the Draper Access V [16:10] Tab-Tensioned Ceiling-Recessed Electric Screen 226" (120" x 192") - Model 140043U. This cutting-edge projection screen is designed to elevate your viewing experience to new heights, providing an immersive display for large venues, auditoriums, boardrooms, and home theaters.

The Access V series is renowned for its exceptional quality and innovative features, and the 140043U model is no exception. With a massive viewing area of 120" x 192" and a 16:10 aspect ratio, this electric screen ensures a wide and cinematic display, making it perfect for presentations, conferences, and movie screenings.

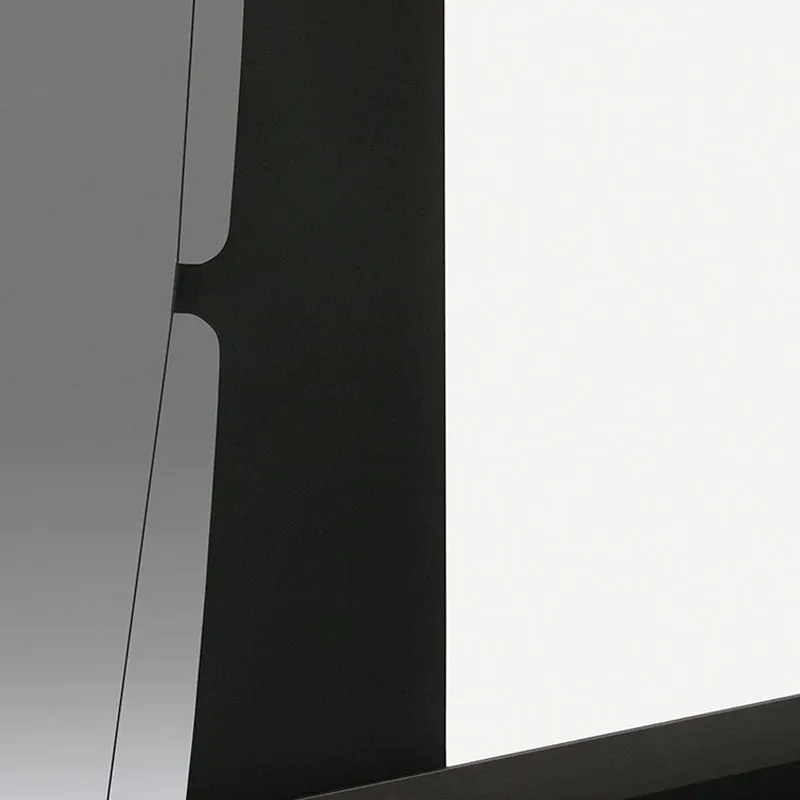

One of the key highlights of the Draper Access V 140043U is its tab-tensioning system. This feature guarantees a flat and wrinkle-free projection surface, ensuring that your content is displayed with utmost clarity and accuracy. Say goodbye to distracting screen distortions and enjoy a seamless viewing experience.

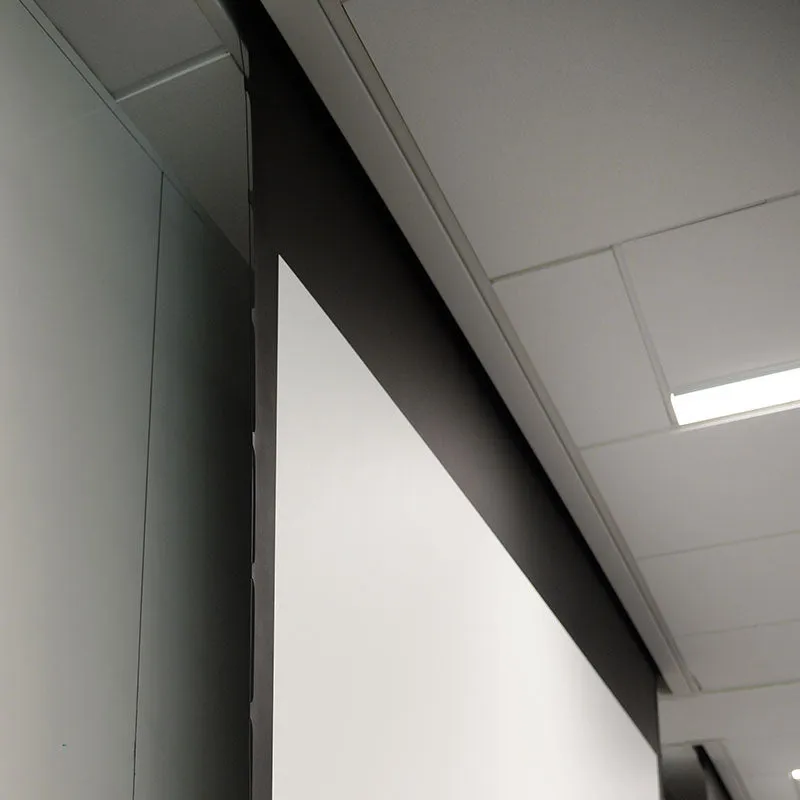

Designed to blend seamlessly into any environment, this electric screen is ceiling-recessed, allowing it to be discreetly hidden when not in use. Its sleek design and whisper-quiet motor operation add a touch of sophistication to your space without compromising on performance.

The Access V 140043U screen is motorized, making it incredibly easy to operate. With the touch of a button, you can effortlessly raise or lower the screen, adjusting it to the desired height. The included RF remote control provides convenient wireless operation, giving you full control from anywhere in the room.

Durability and longevity are also top priorities for Draper, and the Access V 140043U is no exception. The screen is constructed with high-quality materials and features a robust housing, ensuring years of reliable performance. It also comes with a five-year limited warranty, offering you peace of mind and confidence in your investment.

In summary, the Draper Access V [16:10] Tab-Tensioned Ceiling-Recessed Electric Screen 226" (120" x 192") - Model 140043U is a premium projection solution that delivers exceptional image quality, seamless operation, and elegant design. Whether you're hosting a large-scale event or creating a captivating home theater experience, this screen is the perfect choice for your audiovisual needs.

Product Specs

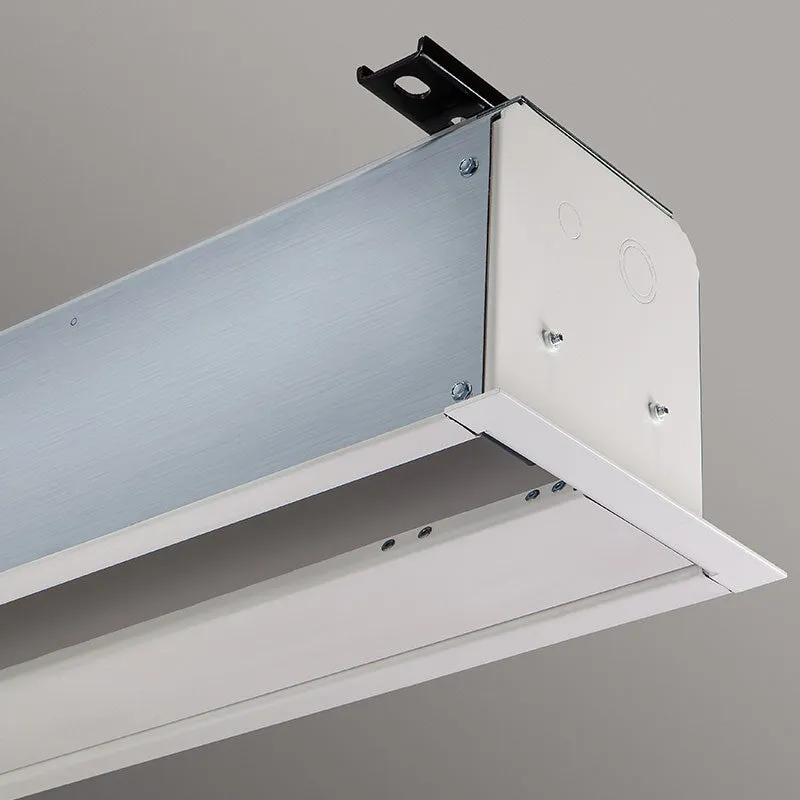

•  Case dimensions are 7-3/8" high x 8-1/16" deep (19 cm x 20 cm), includes trim flange. Built-in controls may increase case length. Mounting brackets may add to case dimensions, see Submittal in the Technical Documents tab for details.

•  Maximum image width up to 16' (488 cm) wide, depending on surface selection.

•  The standard Access is a good alternative whenever the above-ceiling space permits. Access Fit is recommended when space is at a premium.

•  Image area fully framed with black. Standard 12" (30 cm) black drop at top of viewing area.

•  Adjustable or removable hoisting brackets included for easy lifting during installation.

•  Sliding brackets on top of the case allow for adjustments for mounting.

•  Sliding brackets inside case accommodate different size screens.

•  Bottom closure panel detachable or hangs in place with “T” bracket to provide accessibility for service or maintenance.

•  Quick-connect wiring allows for early installation of the case with the addition of the screen later.

•  Low voltage, video interface or other controls can be built into housing for below ceiling access.

•  Includes a 110V, 3-position switch (standard). Quiet, low voltage motors and 220V options are available.

•  White case standard, black available upon request.

•  Custom sizes available.

•  UL Listed.
