Introducing the Draper Access E [NTSC 4:3] ceiling-recessed Electric Screen 7' (50" x 66 1/2"), the perfect solution for high-quality projection in professional settings. This cutting-edge electric screen combines superior performance with convenient installation, making it an ideal choice for boardrooms, classrooms, auditoriums, and home theaters.

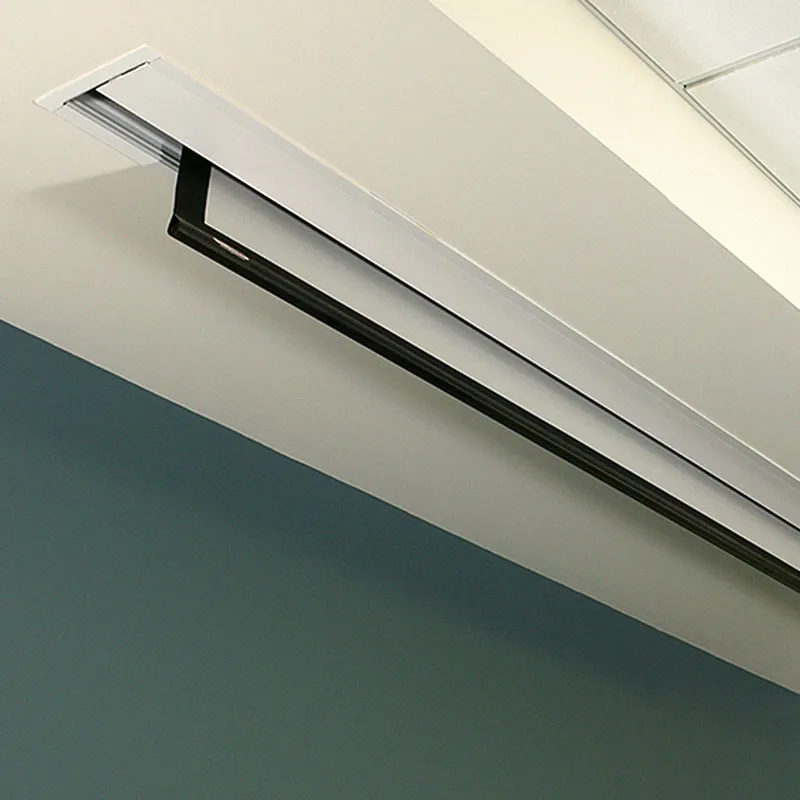

The Draper Access E screen features a sleek and discreet ceiling-recessed design, ensuring a seamless integration into any environment. With its compact size and innovative construction, this screen offers a space-saving solution that can be easily concealed when not in use. The screen housing is made of durable materials to withstand long-term usage and protect the screen surface.

The screen's NTSC 4:3 aspect ratio provides a versatile viewing experience suitable for a wide range of content, including presentations, videos, and slideshows. The screen size of 7' (50" x 66 1/2") ensures a generous display area, allowing your audience to enjoy immersive visuals and vibrant colors.

Designed with user convenience in mind, the Draper Access E screen features an electric motor that allows effortless operation. With the touch of a button or a remote control, the screen smoothly rolls down for projection and retracts back into the ceiling recess when not needed. This automated functionality eliminates the need for manual setup, saving you valuable time and effort.

The screen surface itself is crafted to deliver exceptional image quality. It provides excellent color accuracy, wide viewing angles, and optimal light reflection, ensuring a captivating visual experience from any seating position. The surface is also easy to clean, maintaining its pristine appearance over time.

Installation of the Draper Access E screen is straightforward, thanks to its versatile mounting options and comprehensive installation instructions. The screen can be easily attached to the ceiling or suspended using optional accessories, allowing for flexible placement to suit your specific requirements.

Upgrade your projection setup with the Draper Access E [NTSC 4:3] ceiling-recessed Electric Screen 7'. Enjoy professional-grade visuals, seamless operation, and a sleek design that complements any space. Elevate your presentations, movie nights, and multimedia experiences with this outstanding electric screen from Draper.

Product Specs

•  Case dimensions are 7-3/8" high x 8-1/16" deep (19 cm x 20 cm), includes trim flange. Built-in controls may increase case length. Mounting brackets may add to case dimensions, see Submittal in the Technical Documents tab for details.

•  Maximum image width up to 16' (488 cm) wide, depending on surface selection.

•  The standard Access is a good alternative whenever the above-ceiling space permits. Access Fit is recommended when space is at a premium.

•  Adjustable or removable hoisting brackets included for easy lifting during installation.

•  Black drop standard, depending on screen size. Extra drop above image area available upon request. Extra drop may increase case size.

•  Sliding brackets on top of the case allow for adjustments when mounting.

•  Sliding brackets inside case accommodate different size screens.

•  Bottom closure panel detachable or hangs in place with “T” bracket to provide accessibility for service or maintenance.

•  Quick-connect wiring allows for early installation of the case with the addition of the screen later.

•  Includes a 110V, 3-position switch (standard). Quiet, low voltage motors and 220V options are available.

•  Low voltage, video interface or other controls can be built into housing for access from below ceiling.

•  White case standard, black available upon request.

•  Custom sizes available.

•  UL Listed.
