Introducing the Draper Access E [16:10] Ceiling-Recessed Electric Screen, the perfect solution for achieving an exceptional viewing experience in conference rooms, classrooms, or home theaters. With its impressive 94-inch diagonal size and 16:10 aspect ratio, this screen provides a wide canvas for displaying your content with stunning clarity.

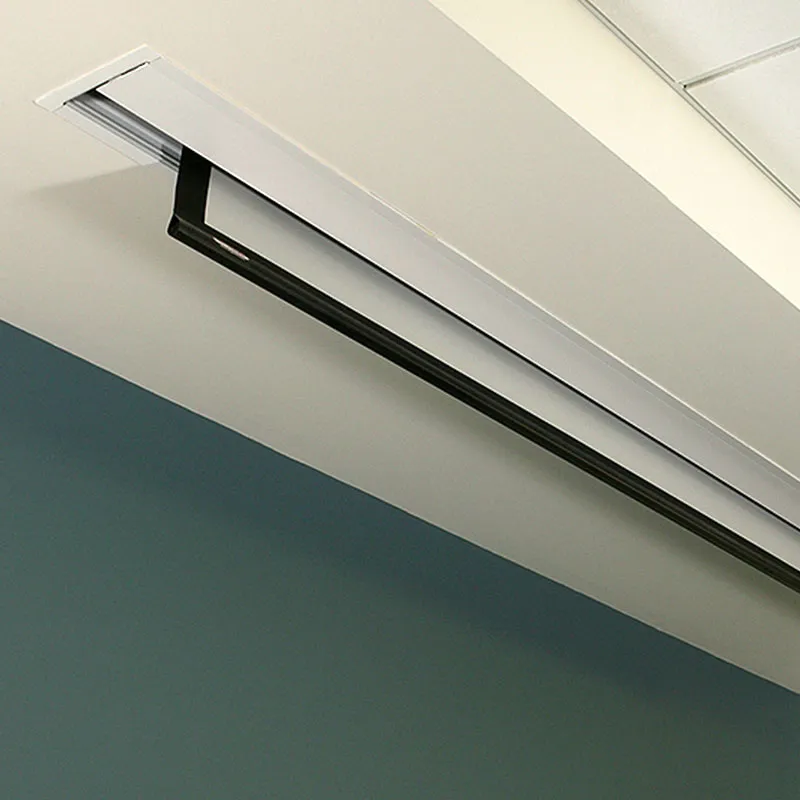

The Draper Access E is specifically designed to be ceiling-recessed, allowing it to seamlessly blend into any environment. This discreet installation ensures that the screen remains out of sight when not in use, preserving the aesthetic appeal of your space while offering the convenience of a motorized retractable screen.

Measuring 50 inches by 80 inches, the screen offers ample space for presentations, videos, or immersive movie nights. The 16:10 aspect ratio provides a wider format, making it ideal for displaying widescreen content, presentations, or high-resolution images.

The electric motorized mechanism allows for smooth and quiet operation, effortlessly raising and lowering the screen with the push of a button. The built-in electric motor ensures precise and accurate positioning, so you can easily set the screen at the desired height for optimal viewing angles.

Featuring high-quality projection surfaces, the Draper Access E guarantees vivid colors, sharp details, and excellent contrast, enhancing the overall visual experience. The screen material is carefully selected to prevent hot spotting, allowing for wide viewing angles and consistent image quality from any position in the room.

The Draper Access E [16:10] Ceiling-Recessed Electric Screen (model number 139113EC) is a reliable and versatile projection solution that combines superior functionality with elegant design. Whether you're delivering a presentation, conducting a training session, or enjoying a movie night at home, this screen will transform your viewing experience into something truly immersive and captivating.

Product Specs

•  Case dimensions are 7-3/8" high x 8-1/16" deep (19 cm x 20 cm), includes trim flange. Built-in controls may increase case length. Mounting brackets may add to case dimensions, see Submittal in the Technical Documents tab for details.

•  Maximum image width up to 16' (488 cm) wide, depending on surface selection.

•  The standard Access is a good alternative whenever the above-ceiling space permits. Access Fit is recommended when space is at a premium.

•  Adjustable or removable hoisting brackets included for easy lifting during installation.

•  Black drop standard, depending on screen size. Extra drop above image area available upon request. Extra drop may increase case size.

•  Sliding brackets on top of the case allow for adjustments when mounting.

•  Sliding brackets inside case accommodate different size screens.

•  Bottom closure panel detachable or hangs in place with “T” bracket to provide accessibility for service or maintenance.

•  Quick-connect wiring allows for early installation of the case with the addition of the screen later.

•  Includes a 110V, 3-position switch (standard). Quiet, low voltage motors and 220V options are available.

•  Low voltage, video interface or other controls can be built into housing for access from below ceiling.

•  White case standard, black available upon request.

•  Custom sizes available.

•  UL Listed.
